Available in material combinations of cast iron, steel and stainless steel.
You can download the data sheet here.
PROKOSCH ring nozzles are suitable for pneumatic conveying, for fluidization and conveying of powdered and granulated materials.
Installation by means of thread directly into the conveying line or optionally by means of flanges or a combination of flange and threaded connection.
Feeding of the conveying air by means of a connection piece directed upwards or against the medium.
Due to our manufacturing quality and strict manufacturing tolerances, the wearing parts – nozzle as well as seal can be replaced by our original parts for years with little effort.
If desired, the ring nozzles can be equipped with suitable attachments such as sight glasses, couplings, non-return valves in our factory.
Model 300, with DIN Flanges
| DN | L | D1 | K | D2 x i | G3 |
| 80 (3″) | 155 | 200 | 160 | 18 x 8 | R 1½” |
| 100 (4″) | 185 | 220 | 180 | 18 x 8 | R 2″ |
Model 310, DIN Flange Inlet, Extrenal Thread Outlet
| DN | L | D1 / K | D2 x i | G2 / t2 | G3 |
| 80 (3″) | 155 | 200 / 160 | 18 x 8 | R 3″ / 24 | R 1½” |
| 100 (4″) | 185 | 220 / 180 | 18 x 8 | R 4″ / 28 | R 2″ |
Model 320, with TW-Flanges
| DN | L | D1 | K | D2 x i | G3 |
| 80 (3″) | 155 | 154 | 130 | 12 x 8 | R 1½” |
| 100 (4″) | 185 | 174 | 150 | 14 x 8 | R 2″ |
Model 330, TW-Flange inlet, External Thread Outlet
| DN | L | D1 / K | D2 x i | G2 / t2 | G3 |
| 80 (3″) | 155 | 154 / 130 | 12 x 8 | R 3″ / 24 | R 1½” |
| 100 (4″) | 185 | 174 / 150 | 14 x 8 | R 4″ / 28 | R 2″ |

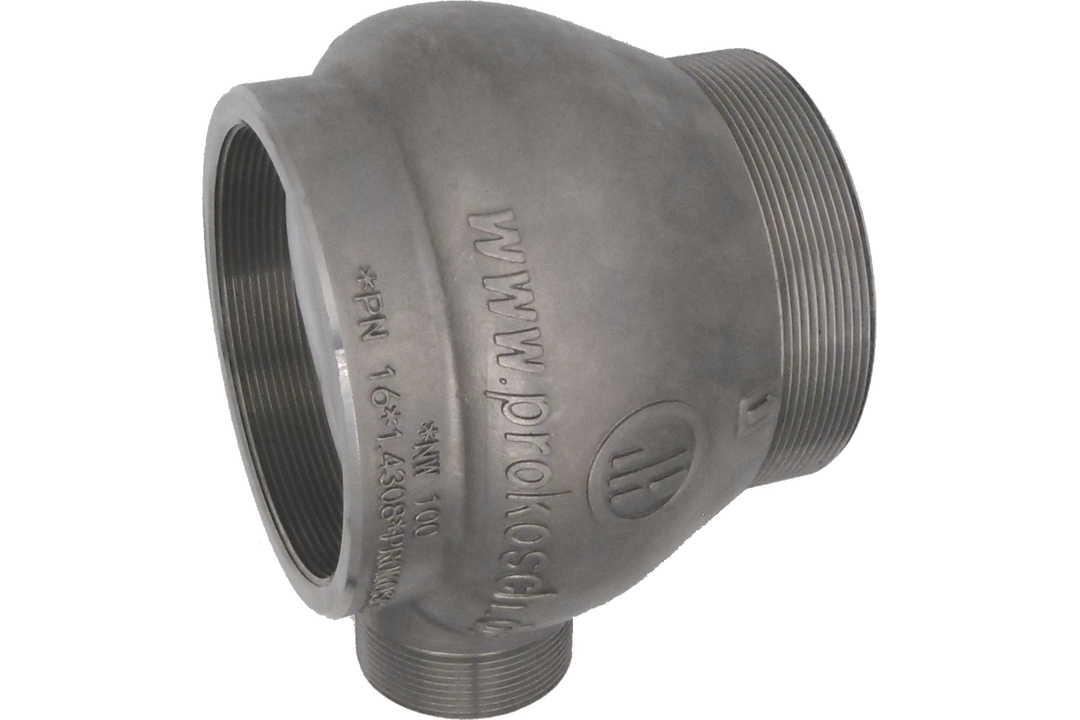

Model 360, Internal Thread Inlet, External Thread Outlet
| DN | PN | L | G1 / t1 | G2 / t2 | G3 |
| 80 (3″) | 10 | 105 | R 3″ / 24 | R 3″ / 24 | R 1½” |
| 100 (4″) | 10 | 135 | R 4″ / 28 | R 4″ / 28 | R 2″ |
Please download data sheet for detailed dimensions and weights.
Product configuration – most applications are covered by our standard designs. They can still be supplemented with a selection of options to suit the application. In addition, we can offer customized special designs for demanding requirements.
| Standard Variations | Code |
| Cast iron housing with steel nozzle, NBR seal | GS |
| Cast iron body with stainless steel nozzle, NBR gasket | GV |
| Stainless steel housing and nozzle, PTFE seal | VV |
Other material combinations available upon request.
| Code | Recommended Application |
| GS | Building materials, Abrasive solids |
| GV | Animal Feed, wheat |
| VV | Foodstuff |
| Options | Code |
| PTFE gasket instead of NBR gasket | PTFE |
| Outlet threaded end with coupling | *** |
Other attachments and special versions available on request.
To ensure excellent reparability and long-term spare parts compatibility, PROKOSCH ring nozzles are manufactured according to our strict manufacturing tolerances. Our employees and the ISO9001 certified quality management system, a control and measurement system from supplier to material receipt to final inspection ensures the highest quality. Furthermore, works certificates according to EN 10204 2.2 as well as 3.1, are available on request.
Model Key: //–
Examples: 330/80/GS, or 360/100/GV PTFE***Outlet fitted with Storz B Coupling
