Double- and single-acting pneumatic actuators for open/shut application.
You can download the data sheet here.

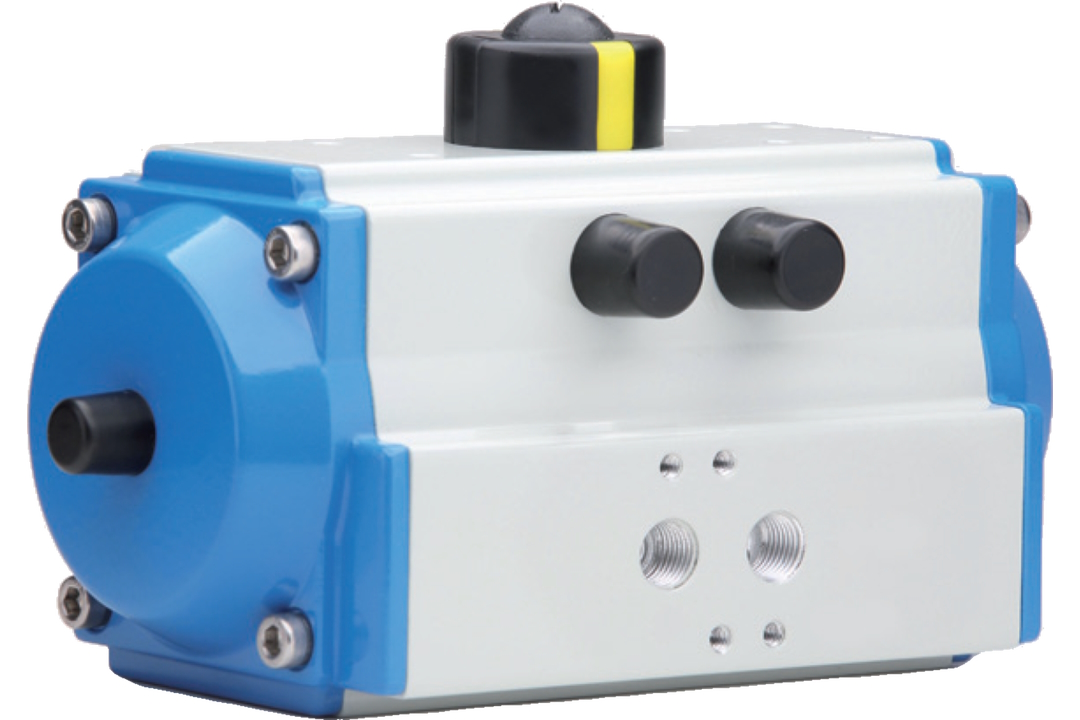

PROKontrol standard pneumatic actuators are maintenance-free dual-piston quarterturn actuators in rack and pinion design and deliver a high torque output whilst being compact and of weight-saving design.
These robust actuators are reliable in operation and versitile in application, suitable also for demanding environments. As such the PROKontrol pneumatic actuators are characterized by their high reliability and a long services life.
| Doppeltwirdkende Antriebe | ||||
| PROKontrol Modelnr. |
B (mm] | T (mm] | H (mm] | A (mm] |
| PDA075 | 210 | 95 | 100 | 120 |
| PDA085 | 237 | 103 | 109 | 129 |
| PDA095 | 295 | 109 | 117 | 137 |
| PDA105 | 301 | 112 | 133 | 153 |
| PDA125 | 340 | 142 | 155 | 175 |
| PDA140 | 433 | 152 | 172 | 192 |
| Einfachwirkende Antriebe | ||||
| PROKontrol Modelnr. |
B (mm] | T (mm] | H (mm] | A (mm] |
| PSA095 | 295 | 109 | 117 | 137 |
| PSA105 | 301 | 112 | 133 | 153 |
| PSA125 | 340 | 142 | 155 | 175 |
| PSA140 | 433 | 152 | 172 | 192 |
| PSA160 | 497 | 174 | 197 | 217 |
| PSA180 | 582 | 206 | 230 | 260 |
| Doppeltwirkende Antriebe | |||
| PROKontrol Modelnr. |
Drehmoment [Nm] | Schaltzeit [s] | |
| PDA075 | 61 | 0,8 | |
| PDA085 | 92 | 0,9 | |
| PDA095 | 137 | 1 | |
| PDA105 | 197 | 1,5 | |
| PDA125 | 307 | 2 | |
| PDA140 | 527 | 2,5 | |
| Einfachwirkende Antriebe | |||
| PROKontrol Modelnr. |
Drehmoment und Schaltzeit | ||
| Luft [Nm] | Feder [Nm] | Schaltzeit [s] | |
| PSA095 | 79…53 | 83…56 | 1…3 |
| PSA105 | 123…81 | 118…76 | 1…3 |
| PSA125 | 176…113 | 188…125 | 1…4 |
| PSA140 | 307…203 | 310…206 | 1…4 |
| PSA160 | 463…298 | 500…335 | 3…4 |
| PSA180 | 797…535 | 742…480 | 3…5 |
